Lynx Rifle Scopes
made a name among hunters and target shooters as reliable high tech rifle scopes, binoculars and
equipment at very affordable price. With it's clear optics, repeatable adjustments and sturdiness - even
with high recoiling calibers - it made a trustworthy name for itself among outdoors men and -women.
Perfectly adapted to our harsh environment, it kept its zero shot after shot, year
after year, and with it's easily accessible adjustment knobs, it is a breeze to dial in.
Lynx rifle scopes are very well known for it's generous eye relieve, which not only aids in
easy target acquisition, but also protects the shooter from Scope bite when shooting
hard kicking calibers.
The multi-layered lens coatings gives a crisp and clear sight picture, even at less favorable
lighting conditions. With the illuminated reticle of some models, hunting and shooting
even in complete darkness poses no problem at all.
Backed by being a local company, any after sales service is a joy.
Click on the links below to view pictures of the different ranges:
LX Professional series. 1" main tube
LX2 Professional series. 1" main tube
LX2 Professional series. 30mm main tube
LX3 Professional series. 30mm main tube
Lynx Optics Order Form
EMF Form BuilderLX Professional series. 1" main tube
Compact 2-7x32mm with good optics and sensible magnification range make this model a good and inexpensive choice for bushveld hunting and mounting onto small or compact rifles (7x brings a 200 metre target to an apparent 29 metres).
The standard off-the-shelf model is fitted with a duplex reticle, but a variety of reticles options are available to be fitted in-house pre- or post-purchase at a reasonable charge. Reticles options specific to this scope are detailed under the options link below.
- 1" one-piece main tube
- Scratch resistant matte black anodized finish
- Nitrogen filled and waterproof to one meter for 60 minutes
- Fully Multi-coated lenses. All internal and external lens surfaces are multi coated and produce a bright, color true contrasting image
- Recoil proof to 1000 gravity; 25% more recoil energy than an average .375
| Power | 2x ~ 7x | Click value | 1/4moa |
| Objective diameter | 32mm | Tube diameter | 25.4mm |
| Field of view in degrees | 85º ~ 28º | Length | 279mm |
| Eye relief | 92 ~ 85mm | Weight | 300g |
| Graticule (std) / options | Plex | Available Finishes | Matte Black |
...

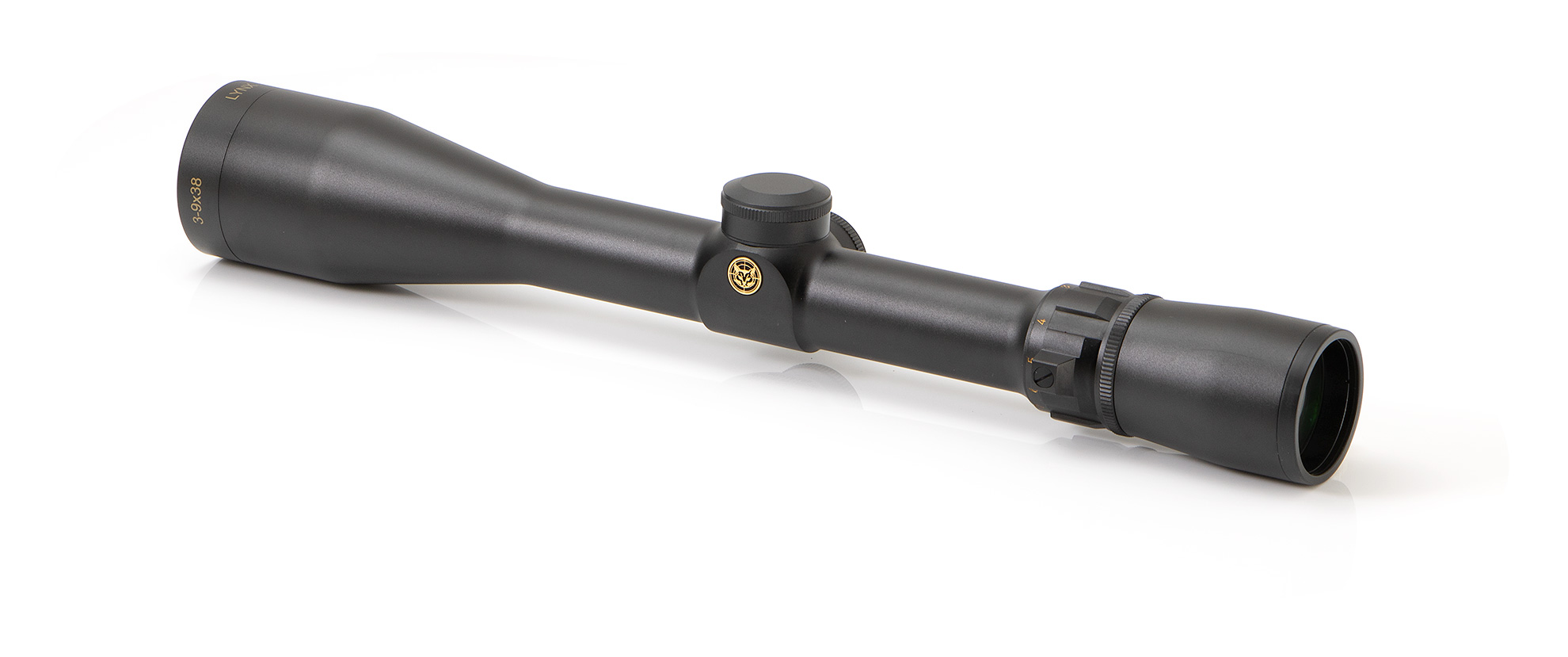

LX 3-9x38
Compact 3-9x38mm with good optics and sensible magnification range make this model a great and inexpensive all-rounder hunting scope for bushveld hunting down to 30 metres and for moderate range, regular-sized game hunting up to 300 metres (9x brings a 300 metre target to an apparent 33 metres).
The standard off-the-shelf model is fitted with a duplex reticle but a variety of reticles options are available to be fitted in-house pre- or post-purchase, at a reasonable charge. Reticles options specific to this scope are detailed under the options link below.
- 1" one-piece main tube
- Scratch resistant matte black anodized finish
- Nitrogen filled and waterproof to one metre for 60 minutes
- Fully Multicoated lenses. All internal and external lens surfaces are multi coated and produce a bright, colour true contrasty image
- Recoil proof to 1000 gravities; 25% more recoil energy than an average .375
| Power | 3x ~ 9x | Click value | 1/4moa |
| Objective diameter | 38mm | Tube diameter | 25.4mm |
| Field of view in degrees | 65º ~ 22º | Length | 315mm |
| Eye relief | 90 ~ 83mm | Weight | 370g |
| Graticule (std) / options | Plex | Available Finishes |
Matte Black |
...

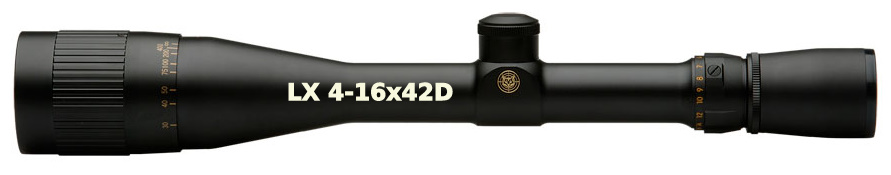

LX 4-16x42 features turrets with 1/4 MOA clicks and a focusing front objective lens. The magnification range of this model is well suited for target shooting.
Good optics, reliable adjustment controls and recoil proof to 1000 G make this scope an excellent choice for shooters who are looking for a good starter scope for range shooting and competitions.
The standard off-the-shelf model is fitted with a duplex reticle but a variety of reticles options are available to be fitted in-house pre- or post-purchase, at a reasonable charge. Reticles options specific to this scope are detailed under the options link below.
- Adjustable objective focusses from 10m to infinity
- 1" one-piece main tube
- Scratch resistant matte black anodized finish
- Nitrogen filled and waterproof to one metre for 60 minutes
- Fully Multicoated lenses. All internal and external lens surfaces are multi coated and produce a bright, colour true contrasting image
- Recoil proof to 1000 gravities; 25% more recoil energy than an average .375
- Lifetime warranty
...

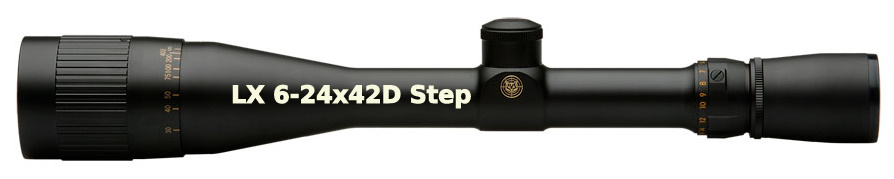

LX 6-24x42 features turrets with 1/8 MOA clicks and a focusing front objective lens. The magnification range of this model is well suited for target shooting.
Good optics, reliable adjustment controls and recoil proof to 1000 G make this scope an excellent choice for shooters who are looking for a good starter scope for range shooting and competitions.

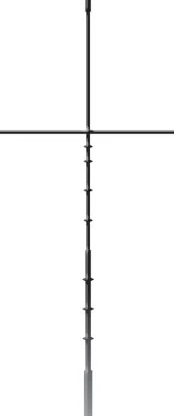

The standard off-the-shelf model is fitted with a Hold Over 2 reticle which has nine hold-over aiming points below the centre cross, providing an accurate means of compensating for bullet drop over 100 to 400 metres without touching the scope. The aiming-off points are small and unobtrusive, presenting an uncluttered sight-picture that does not confuse the eye.
Other reticles for this model scope are available to be fitted in-house pre- or post-purchase, at a reasonable charge. Reticles options specific to this scope are detailed under the options link below.
- Adjustable objective focusses from 15m to infinity
- 1" one-piece main tube
- Scratch resistant matte black anodized finish
- Nitrogen filled and waterproof to one metre for 60 minutes
- Fully Multicoated lenses. All internal and external lens surfaces are multi coated and produce a bright, colour true contrasting image
- Recoil proof to 1000 gravities; 25% more recoil energy than an average .375
- Lifetime warranty
***

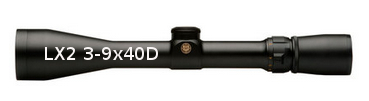

LX2 Professional series. 1" main tube
Crystal clear optics, generous eye-relief and sensible magnification range all come together to make LX2 3-9x40 a great no-frills all-rounder hunting scope for bushveld hunting down to 30 metres and for moderate range, regular-sized game hunting up to 300 metres (9x brings a 300 metre target to an apparent 33 metres).
Standard off the shelf model is fitted with a duplex reticle but, like most Lynx scopes a variety of reticles are available to be fitted in-house pre- or post-purchase, at a reasonable charge. Specific reticles available for this model are detailed under the options tab below.,
- 1" one-piece main tube
- Scratch resistant matte black anodized finish
- Nitrogen filled and waterproof to one metre for 60 minutes
- Fully Multicoated lenses. All internal and external lens surfaces are multi coated and produce a bright, colour true contrasting image
- Recoil proof to 1000 gravities; 25% more recoil energy than an average .375
| Power | 3x ~ 9x | Click value | 1/4moa |
| Objective diameter | 40mm | Tube diameter | 25.4mm |
| Field of view in degrees | 63º ~ 21º | Length | 312mm |
| Eye relief | 98 ~ 100mm | Weight | 375mm |
| Available Finishes | Matte Black |
...

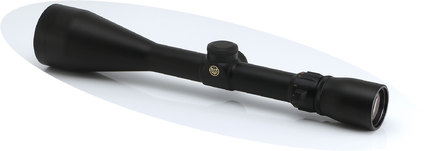

LX2 3.5-10x50 & LX2 3.5-10x50 SAH
If you’re looking for a scope with more light gathering power the new LX2 3.5-10x50 is for you. At 56% brighter than a 40mm objective lens scope, the LX2's crystal clear optics and variable magnification from 3.5X to 10X makes this scope ideally suited to hunting in the bush from 35 metres and open plain hunting up to about 400 metres, well into the twilight hours.
- One-piece maintube for added strength and recoil resistance.
- Improved waterproofing.
- Fully Multicoated. All lens surfaces are mutlicoated to provide sharper and brighter images. Better contrast, less glare / flare.
- 1/4 MOA windage / elevation controls with tool-less zero
- Plex or SAH Reticle
| Low Power | High Power | |
| Actual magnification | 3.5 | 10 |
| Exit pupil diameter (mm) | 14 | 5 |
| Eye relief (mm) | 90mm | 87mm |
| Actual field of view | 57° | 2° |
| Objective diameter | 50mm | |
| Total windage adjustment range | 50MOA | |
| Total elevation adjustment range | 50MOA | |
| Tube diameter | 25.4mm | |
| Waterproof | Positive internal pressure 300KPa. Submersible 1m for 60 minutes. | |
| Recoil proof | 1000G (.375 approximate equivalent + 25%) | |
| Fog proof | Purged with dry nitrogen | |
| Temperature operating range | -20 to +71°C | |
| Reticle | Plex or SAH, 2nd focal plane. | |
| Parallax | 100m fixed | |
| Eyepiece | Lockable slow focus | |
| Lens coating | Fully multi coated. Light transmission 99.7% per lens surface | |
| Windage / elevation controls | Finger adjustable hunting controls with tool free zero | |
| Windage / elevation click value | 0.25 MOA | |
| Length | 328mm | |
| Weight | 487g | |
| Country of manufacture | Japan | |
...
- One-piece maintube for added strength and recoil resistance.
- Improved waterproofing.
- Fully Multicoated. All lens surfaces are mutlicoated to provide sharper and brighter images. Better contrast, less glare / flare.
- All-alloy gimbal system improves accuracy, reliability and repeatability by increasing recoil resistance.
- High-precision adjustment tracking system ensures higher accuracy of the windage / elevation adjustment travel and return to zero repeatability.
| Power | 4x ~ 12x | Click value | 1/4moa |
| Objective diameter | 40mm | Tube diameter | 25.4mm |
| Field of view in degrees | 48º ~ 16º | Length | 353mm |
| Eye relief | 98 ~ 95mm | Weight | 500g |
| Graticule (std) / options | (Plex) / C,D,E,F,G | Available Finishes | Matte Black |
...

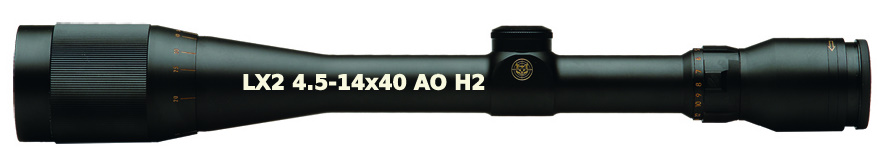

LX2 4.5x40 AO & LX2 4.5-14x40AO H2
- One-piece maintube for added strength and recoil resistance. Improved waterproofing.
- Multicoated. Lens surfaces are Multi coated for maximum light transmission and improved image contrast.
- Accurate, reliability and repeatable.
- Accurate windage / elevation adjustments with return to zero repeatability.
| Power | 4.5x ~ 14x | Click value | 1/4moa |
| Objective diameter | 40mm | Tube diameter | 25.4mm |
| Field of view in degrees | 4º - 1.4º | Length | 368mm |
| Eye relief | 90 ~ 83mm | Weight | 556g |
| Graticule (std) / options | Plex | Available Finishes | Matte Black |
***
LX2 Professional series. 30mm main tube

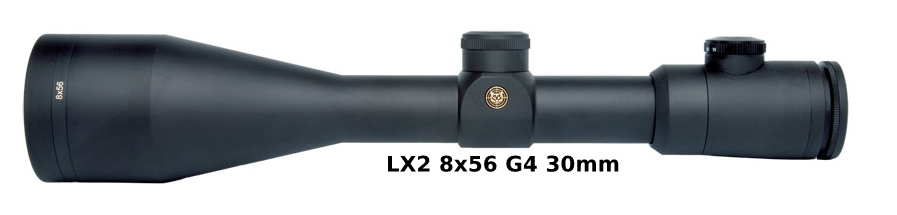

Lynx LX2 8x56 iR G4 is ideal for moderate range daytime hunting as well as low-light and night-time hunting. The centre green dot and bold lines of the German No4 reticle are easy to see in poor light and at night, making it ideal for nocturnal problem animal control High transmission multicoated lenses transmit a maximum amount of available light from the target while the illuminated green centre dot contrasts sharply against dim naturally lit and spotlight-illuminated targets.
- One-piece maintube for added strength and recoil resistance.
- Improved waterproofing.
- Fully Multicoated. All lens surfaces are mutlicoated to provide sharper and brighter images. Better contrast, less glare / flare.
- All-alloy gimbal system improves accuracy, reliability and repeatability by increasing recoil resistance.
- High-precision adjustment tracking system ensures higher accuracy of the windage / elevation adjustment travel and return to zero repeatability.
| Power | 8x | Click value | 1/4moa |
| Objective diameter | 56mm | Tube diameter | 30mm |
| Field of view in degrees | 29° | Length | 343mm |
| Eye relief | 82mm | Weight | 636g |
| Graticule (std) / options | G#4 with illuminated dot | Available Finishes | Matte Black |
...

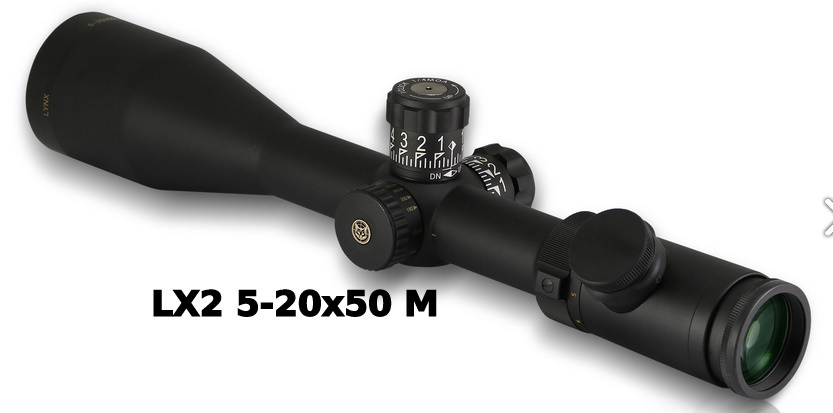

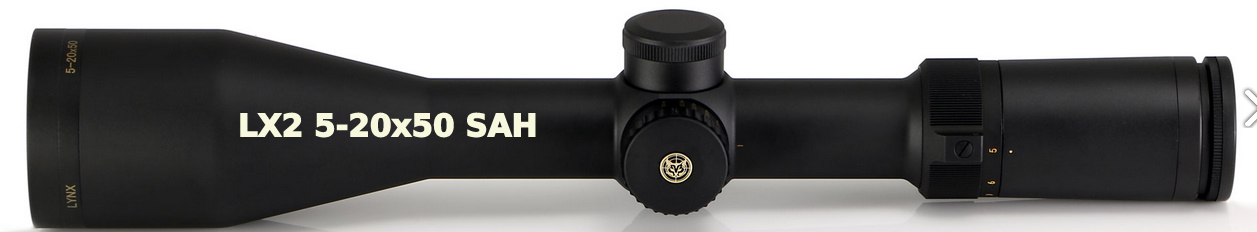

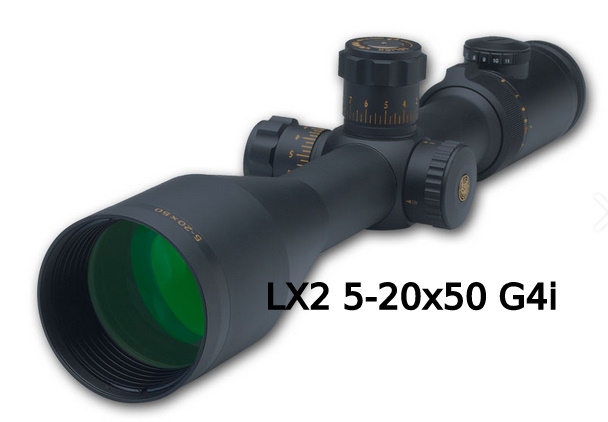

Suitable for medium to long range hunting and moderate range target shooting.
Crisp optics and side-focus parallax make Lynx LX2 5-20x50 eminently suitable for long range work with flat-shooting calibres. Ideal for hunting or culling springbok at medium to long-range where the high magnification setting of 20x is beneficial when hitting small target area consistently and reliably.
Equally at home on the range and on the hunt in open veld, the optics on Lynx LX2 5-20x50 are crisp and clear enough for you to see bullet holes in a target at 200-300 metres if conditions permit.
- saddle-mounted parallax adjustment from 25 metres to infinity
- 30mm one-piece main-tube
- Magnification range suitable for hunting down to 50 metres and, at 20x, brings a 500 metre distant target down to an apparent 25m
- Side focus parallax control
- 50mm objective lense lets in 25% more light than a comparable scope with a 40mm lens with just 5mm more height clearance required off the barrel (2.5mm if replacing a scope with 1" tube)
- 106~96mm eye-relief makes the scope suitable for mounting on any calibre rifle including the heavy kicking ones
- 40 MOA windage / elevation adjustment (more than 550mm of adjustment at 100 metres in each direction from centre)
- Available with standard tool-less adjustable 1/8 moa windage / elevation controls
| Low Power | High Power | |
| Actual magnification | 5.21 | 19.6 |
| Exit pupil diameter (mm) | 10 | 2.5 |
| Eye relief (mm) | 96 | 103 |
| Actual field of view | 3.65 | 0.97 |
| Objective diameter | 50mm | |
| Total windage adjustment range | 40 MOA | |
| Total elevation adjustment range | 40 MOA | |
| Tube diameter | 30mm | |
| Waterproof | Positive internal pressure 300KPa. Submersible 1m for 60 minutes. | |
| Recoil proof | 1000G (.375 approximate equivalent + 25%) | |
| Fog proof | Purged with dry nitrogen | |
| Temperature operating range | -17 to +71°C | |
| Reticle | Glass etched or metal, depending on the model. 2nd focal plane. | |
| Parallax | Side focus 25m to infinity | |
| Eyepiece | European fast focus | |
| Lens coating | Fully multi coated. Light transmission 99.7% per lens surface | |
| Windage / elevation controls | Finger adjustable hunting controls with tool free zero | |
| Windage / elevation click value | 1/8 MOA (3.5 mm @ 100 m) | |
| Length | 353mm | |
| Weight | 800g | |
| Country of manufacture | Japan | |
...
.jpg)
Suitable for medium to long range hunting and moderate range target shooting.
Crisp optics and side-focus parallax make Lynx LX2 5-20x50 eminently suitable for long range work with flat-shooting calibres. Ideal for hunting or culling springbok at medium to long-range where the high magnification setting of 20x is beneficial when hitting small target area consistently and reliably.
Equally at home on the range and on the hunt in open veld, the optics on Lynx LX2 5-20x50 are crisp and clear enough for you to see bullet holes in a target at 200-300 metres if conditions permit.
- saddle-mounted parallax adjustment from 25 metres to infinity
- 30mm one-piece main-tube
- Magnification range suitable for hunting down to 50 metres and, at 20x, brings a 500 metre distant target down to an apparent 25m
- Side focus parallax control
- 50mm objective lets in 25% more light than a comparable scope with a 40mm lens with just 5mm more height clearance required off the barrel (2.5mm if replacing a scope with 1" tube)
- 106~96mm eye-relief makes the scope suitable for mounting on any calibre rifle including the heavy kicking ones
- 40 MOA windage / elevation adjustment (more than 550mm of adjustment at 100 metres in each direction from centre)
- Available with standard tool-less adjustable 1/8 windage / elevation controls
| Low Power | High Power | |
| Actual magnification | 5.21 | 19.6 |
| Exit pupil diameter (mm) | 10 | 2.5 |
| Eye relief (mm) | 96 | 103 |
| Actual field of view | 3.65 | 0.97 |
| Objective diameter | 50mm | |
| Total windage adjustment range | 40 MOA | |
| Total elevation adjustment range | 40 MOA | |
| Tube diameter | 30mm | |
| Waterproof | Positive internal pressure 300KPa. Submersible 1m for 60 minutes. | |
| Recoil proof | 1000G (.375 approximate equivalent + 25%) | |
| Fog proof | Purged with dry nitrogen | |
| Temperature operating range | -17 to +71°C | |
| Reticle | Glass etched or metal, depending on the model. 2nd focal plane. | |
| Parallax | Side focus 25m to infinity | |
| Eyepiece | European fast focus | |
| Lens coating | Fully multi coated. Light transmission 99.7% per lens surface | |
| Windage / elevation controls | Finger adjustable hunting controls with tool free zero | |
| Windage / elevation click value | 1/8 MOA (3.5 mm @ 100 m) | |
| Length | 353mm | |
| Weight | 800g | |
| Country of manufacture | Japan | |
...
LX2 5-20x50 M20 Tac
Suitable for medium to long range hunting and moderate range target shooting.
Crisp optics and side-focus parallax make Lynx LX2 5-20x50 eminently suitable for long range work with flat-shooting calibres. Ideal for hunting or culling springbok at medium to long-range where the high magnification setting of 20x is beneficial when hitting small target area consistently and reliably.
Equally at home on the range and on the hunt in open veld, the optics on Lynx LX2 5-20x50 are crisp and clear enough for you to see bullet holes in a target at 200-300 metres if conditions permit.
- saddle-mounted parallax adjustment from 25 metres to infinity
- 30mm one-piece main-tube
- Magnification range suitable for hunting down to 50 metres and, at 20x, brings a 500 metre distant target down to an apparent 25m
- Side focus parallax control
- 50mm objective lets in 25% more light than a comparable scope with a 40mm lens with just 5mm more height clearance required off the barrel (2.5mm if replacing a scope with 1" tube)
- 106~96mm eye-relief makes the scope suitable for mounting on any calibre rifle including the heavy ones
- 40 MOA windage / elevation adjustment (more than 550mm of adjustment at 100 metres in each direction from centre)
- Available with standard tool-less adjustable 1/4or 1/8 moa windage / elevation controls or ¼ moa target / tactical turrets and a choice of reticles
| Low Power | High Power | |
| Actual magnification | 5.21 | 19.6 |
| Exit pupil diameter (mm) | 10 | 2.5 |
| Eye relief (mm) | 96 | 103 |
| Actual field of view | 3.65 | 0.97 |
| Objective diameter | 50mm | |
| Total windage adjustment range | 40 MOA | |
| Total elevation adjustment range | 40 MOA | |
| Tube diameter | 30mm | |
| Waterproof | Positive internal pressure 300KPa. Submersible 1m for 60 minutes. | |
| Recoil proof | 1000G (.375 approximate equivalent + 25%) | |
| Fog proof | Purged with dry nitrogen | |
| Temperature operating range | -17 to +71°C | |
| Reticle | Glass etched or metal, depending on the model. 2nd focal plane. | |
| Parallax | Side focus 25m to infinity | |
| Eyepiece | European fast focus | |
| Lens coating | Fully multi coated. Light transmission 99.7% per lens surface | |
| Windage / elevation controls | Tactical controls or finger adjustable hunting controls with tool free zero | |
| Windage / elevation click value | 1/8 MOA (3.5 mm @ 100 m) | |
| Length | 353mm | |
| Weight | 800g | |
| Country of manufacture | Japan | |
***
LX3 Professional series. 30mm main tube
LX3 1-6x24 G4i Hunter
Extra low dispersion glass and the latest anti-reflective lens coating technology gives brilliant image clarity and brightness.
1 to 6 magnification range is ideal for fast close‐up dangerous game hunting as well as bush veld hunting at moderate‐range up to 300 m. The long eye-relief keeps the scope a safe distance from your brow when in the shooting position and the 95 mm long mountable area of the straight‐through objective‐side tube makes the scope easy to mount at the safe and correct distance from your eye over even the longest actions.
Recoil tested on .450 Rigby and .505 Gibbs amongst others, LX3 1-6x24 is suitable for everyday use on any bush veld calibre. The reticle, usually the most fragile component in any rifle scope and the most likely component to fail under severe or bi‐directional recoil, is 6mm thick glass which means it is for all practical purposes indestructible. The 30mm thick-walled scope tube is contoured specifically to fit over long actions and, when the scope is correctly mounted and proper shooting posture is observed, the 100mm-plus eye relief will make sure that a safe distance is maintained between your brow and the scope eyepiece at all times.
German No.4 Reticle with Illuminated Dot
Thick outer bars lead the eye to the centre finer cross, which has a tiny illuminated aiming point. The centre opening can be used to bracket a fast moving target for snap-shooting while the bold outer posts are easily visible against mottled shadow vegetation, even in poor light.
| Low Power | High Power | |
| Actual Magnification | 1.0 | 5.9 |
| Exit pupil diameter (mm) | 12 | 4.06 |
| Eye-relief (mm) | 111mm | 106mm |
| Actual FOV | 21.75° | 3.75° |
| Objective diameter | 24mm | |
| Total Windage adjustment range | 100 MOA | |
| Total Elevation adjustment range | 120 MOA | |
| Tube diameter | 30mm | |
| Water proof | Positive internal pressure 300kPa. Submersible 1m for 60 minutes. | |
| Recoil proof | 1000G | |
| Fog proof | Dry nitrogen purged | |
| Temperature operating range | -17 to +70°C | |
| Reticle | German #4 with green illuminated dot | |
| Dot size | Dot subtends 1/2 moa @ 6x | |
| Battery type | CR2032 | |
| Switch type | Rotary. 11 brightness settings with "off" position between each setting | |
| Parallax | Fixed. 100m | |
| Eyepiece | European-style fast focus | |
| Antireflective lens coating | Fully multi coated | |
| Windage / Elevation control | Finger-adjustable | |
| Windage click value | 0.25 MOA | |
| Elevation click value | 0.25 MOA | |
| Length | 265mm | |
| Weight | 525g | |
| Country of manufacture | Japan | |
German No.4 reticle specifications
Instructions - Riflescopes 2017
...

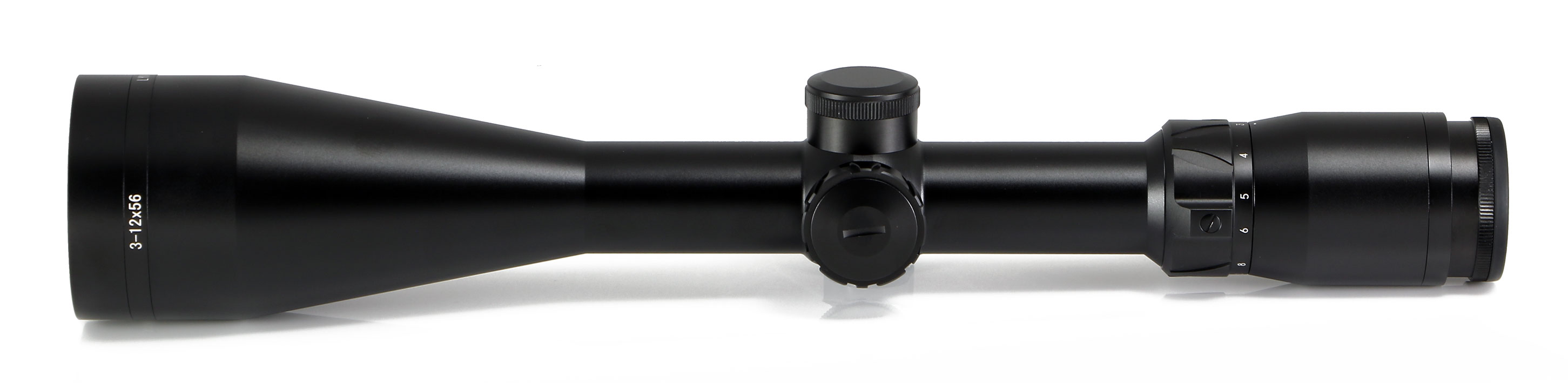

LX3 3-12x56 SAH
Extra low dispersion glass and the latest anti-reflective lens coating technology gives brilliant image clarity and brightness.
Set the scope to 8x and the scope transmits more light to your fully dark-adapted eye than it can use. This extends the maximum distance you can identify targets at at night by a factor of eight.
-
Fixed Focus
-
Parallax is set at 150m.
-
Illuminated SA Hunter Reticle
With aiming points that compensate for distance as well as cross-winds Lynx SA Hunter reticle is practical, easy to use and provides plenty of functionality. It is calibrated in metres for distance and km/h for winds and is designed to work with most popular manufactured ammunition. The bold reticle lines are easy to see in poor light, even if your eyesight isn’t perfect, and you can light up the centre aimpoint of the crosshair if if you need to.
| Low Power | High Power | |
| Magnification | 3 | 12 |
| Exit pupil diameter (mm) | 11.3 | 4.7 |
| Eye-relief (mm) | 85-99 | 85-98 |
| Actual FOV | 7.07º | 1.77º |
| Dioptre adjustment | -2D to +2D | |
| Objective diameter | 56mm | |
| Total Windage adjustment range | 60MOA | |
| Total Elevation adjustment range | 60MOA | |
| Tube diameter | 30mm | |
| Tube material | Black hard anodized aluminium (HV300) | |
| Water proof | Positive internal pressure 300kPa. Submersible 1m for 60 minutes. | |
| Recoil proof | 1000G 1ms x 1000 | |
| Fog proof | Dry nitrogen purged | |
| Temperature operating range | -20 to +71°C | |
| Reticle | Illuminated SA Hunter | |
| Battery type | CR2032 | |
| Switch type | Mechanical saddle mounted. 10 brightness settings. Instant off/on. | |
| Parallax | Fixed 150m | |
| Eyepiece | European-style fast focus | |
| Antireflective lens coating | Fully multi coated | |
| Light Transmission | 88.84% (day) | 86.64% (night) | |
| Windage / Elevation control | Capped. Pup-up type | |
| Windage click value | 1/4 moa | |
| Elevation click value | 1/4 moa | |
| Length | 380mm | |
| Weight | 721g | |
| Country of manufacture | Japan | |
Download Instructions for SA Hunter reticle fitted to LX3 3-12x56
Instructions - Riflescopes 2017
...

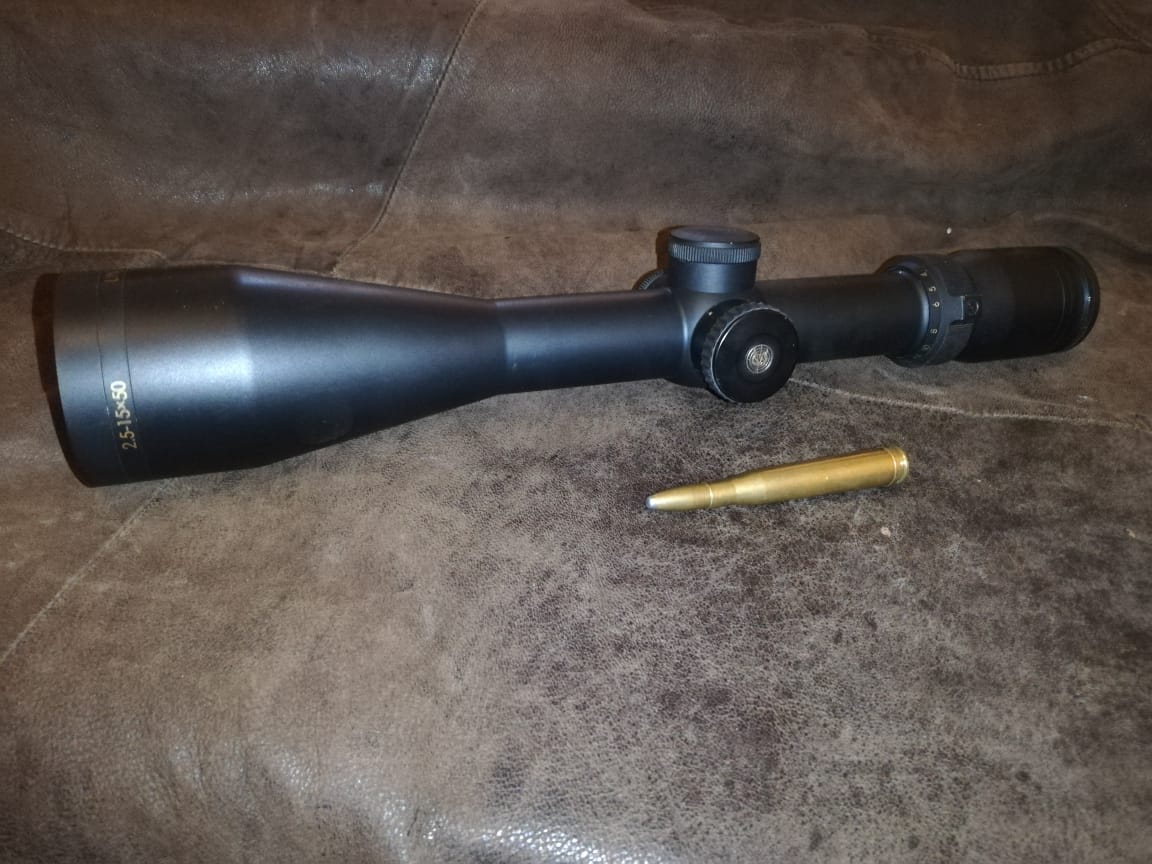

LX3 2.5-15x50 SAH
Extra low dispersion glass and the latest anti-reflective lens coating technology gives brilliant image clarity and brightness. The scope is easy on the eye during prolonged periods of use due to its generous and forgiving eye relief and the long 155 mm main tube makes for easy mounting onto long-action hunting calibers.
As suggested by the model number, Lynx LX3 2.5‑15x50 SA Hunter is fitted with the tried and tested SA Hunter reticle that is easy to use and provides aiming points that compensate for distance as well as cross-winds. Calibrated in metres for distance and km/h for wind, SA Hunter reticle works with most popular hunting and varmint calibres. The bold reticle lines are easily visible in poor light but still thin enough for accurate shot placement on small targets. A small red centre cross lights up dead-centre to make the aim point more easily visible at night with minimal effect on your night vision.
Side Focus & Reticle Illuminator
Parallax is focusable from 35 metres to beyond infinity. The parallax adjustment wheel is mounted on the side of the scope alongside the illuminator switch, which can be turned on and off to one of 11 brightness settings with a single click.
Pop-up ¼ MOA adjustment controls make it a snap to shoot the scope in.
| Low Power | High Power | |
| Magnification | 2.58x | 14.91x |
| Exit pupil diameter (mm) | 11.6 | 3.4 |
| Eye-relief (mm) | 99 | 98 |
| Actual FOV | 8.22° | 1.42° |
| Dioptre adjustment | -2.5D to +2.5D | |
| Objective diameter | 50mm | |
| Total Windage adjustment range | 70 MOA | |
| Total Elevation adjustment range | 70 MOA | |
| Tube diameter | 30mm | |
| Tube material | Black hard anodized aluminium (HV300) | |
| Water proof | Positive internal pressure 300kPa. Submersible 1m for 60 minutes. | |
| Recoil proof | 1000G 1ms x 1000 | |
| Fog proof | Dry nitrogen purged | |
| Temperature operating range | -20 to +71°C | |
| Reticle | Illuminated SA Hunter | |
| Battery type | CR2032 | |
| Switch type | Mechanical saddle mounted. 10 brightness settings. Instant off/on. | |
| Parallax | Side focus | |
| Eyepiece | European-style fast focus | |
| Antireflective lens coating | Fully multi coated | |
| Light Transmission | 87.98% (day) | 86.40% (night) | |
| Windage / Elevation control | Target/Tactical with zero stop on elevation | |
| Windage click value | 1/4 MOA | |
| Elevation click value | 1/4 MOA | |
| Length | 381mm | |
| Weight | 780g | |
| Country of manufacture | Japan | |
Instructions for Lynx LX3 2.5-15x50 SA Hunter
Instructions - Riflescopes 2017
***
LX3 Competition Series

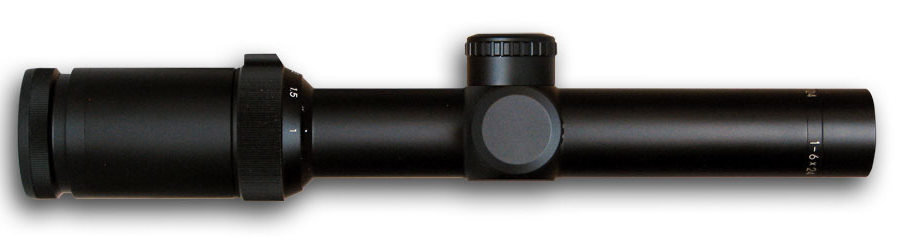

LX3 1-6x24 3GS Tactical
Extra low dispersion glass and the latest anti-reflective lens coating technology gives brilliant image clarity and brightness.
With the scope set to 1x and the centre circle & dot illuminated LX3 1-6x24 is an effective zero magnification holographic weapon sight, perfect for most types of close-up speed shooting; the maximum magnification setting of 6x is ideal for bushveld hunting as well as action sport shooting.
3GS Tactical Reticle for Big Bore Hunting and Sport Shooting
Clean and unobtrusive by design, Lynx 3GS reticle makes it a cinch to hit both nearby and faraway targets quickly and accurately without having to adjust the scope. IPSC, IDPA and 3GN sport shooters using the 5.56x45mm cartridge will easily hit the target from 10 to 300 metres away, while big bore rifle hunters and regular sport shooters can use the 3GS reticle to compensate for the trajectory of heavier bullets over distances up to 200 metres.
Although primarily intending it for use in IPSC, IDPA and 3GN-style sport shooting, tests in the field have proven that the same design‐elements that make the 3GS reticle good for IPSC make it perfect for bushveld and big bore rifle hunters as well. With magnification set to 1 the brightly illuminated centre circle and dot performs as an effective zero magnification red dot or holographic weapon sight; at 6x the reticle is good for longer‐range precision shooting. The bottom vertical post has a twelve‐step mil ranging scale and the centre circle‐and‐dot simultaneously provides for both fast and high accuracy shot placement depending on the immediate situation. At 6x, when the centre aiming dot is zeroed at 200 metres, the bottom of the centre aiming circle is a precise 300 metre hold‐over aiming point for the 5.56x45mm NATO cartridge. The 200m zero is also a very useful setting for close‐quarters shooting from 10 metres to 50 metres for most calibres, and will enable hunt‐accurate shooting up to 300m without the need to adjust the scope. The expanding graduations in the four outer posts are designed primarily to lead the shooter’s eye to the centre aiming area but also serve as holding off aiming points for fast‐moving targets.
Recoil tested up to .450 Rigby, LX3 1-6x24 is suitable for everyday use on any bushveld calibre. The 30mm thick-walled scope tube is contoured specifically to fit over long actions and, when the scope is correctly mounted and proper shooting posture is observed, the 100mm-plus eye relief will make sure that a safe distance is maintained between your brow and the scope eyepiece at all times.
| Low Power | High Power | |
| Actual Magnification | 1.0 | 5.9 |
| Exit pupil diameter (mm) | 12 | 4.06 |
| Eye-relief (mm) | 111 mm | 106 mm |
| Actual FOV | 21.75° | 3.75° |
| Objective diameter | 24 mm | |
| Total Windage adjustment range | 100 MOA | |
| Total Elevation adjustment range | 120 MOA | |
| Tube diameter | 30 mm | |
| Water proof | Positive internal pressure 300 kPa. Submersible 1 metre for 60 minutes. | |
| Recoil proof | 1000 G | |
| Fog proof | Dry nitrogen purged | |
| Temperature operating range | -17 to +70 °C | |
| Reticle | 3GS Tactical | |
| Dot size | Dot subtends 1/2 MOA @ 6x | |
| Battery type | CR2032 | |
| Switch type | Rotary. 11 brightness settings with "off" position between each setting | |
| Parallax | Fixed. 100 m | |
| Eyepiece | European-style fast focus | |
| Antireflective lens coating | Fully multi coated | |
| Windage / Elevation control | Finger adjustable | |
| Windage click value | 1/4 MOA | |
| Elevation click value | 1/4 MOA | |
| Length | 265 mm | |
| Weight | 525 g | |
| Country of manufacture | Japan | |
Instruction supplement for Lynx 3GS reticle
Instructions - Riflescopes 2017
...

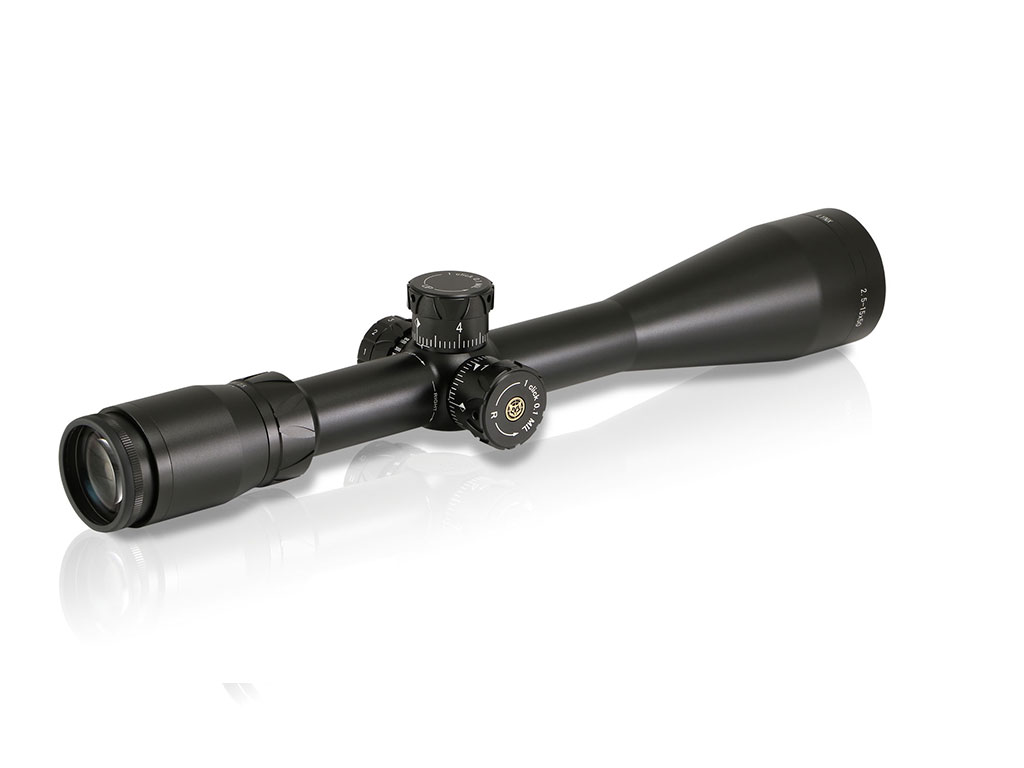

LX3 2.5-15x50 MRF Tac
Extra low dispersion glass and the latest anti-reflective lens coating technology gives brilliant image clarity and brightness. The scope is easy on the eye during prolonged periods of use due to its generous and forgiving eye relief and the long 155 mm main tube makes for easy mounting onto long-action rifles.
Illuminated Lynx RF-Tactical Reticle
Lynx RF-Tactical reticle is newly designed for tactical sport shooters. It is graduated in mils in 1 mil and 1/2 mil increments. The centre circle and dot illuminate green to provide for both quick and accurate aiming, depending on your situational requirement.
The ranging scale, calibrated to range 50cm high target from 200 metres to 1 200 metres in 100 metre increments and 33cm & 25cm high targets from 200 metres to 600 metres, is inset at the bottom of the sight picture.

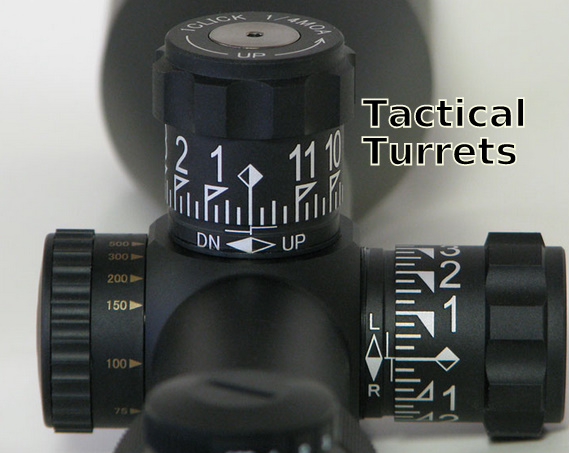

0.1 Mil Click Tactical Controls
Low-profile tactical controls elevation control is fitted with an easy to engage zero stop function which permits full upward adjustment of the point of aim and returns precisely to your pre-determined zero position.
The scope adjustment controls are engraved with large, highly-visible numbers which make them easy to read in poor light. Each click moves the point of aim 0.1 mil and one full revolution of the control moves the point of aim 5 mils, which matches the length of the measured centre portion of the reticle.
The parallax focus wheel is mounted on the side of the scope with the reticle illuminator switch. Parallax is focusable from 35 metres to beyond infinity.
| Low Power | High Power | |
| Magnification | 2.58x | 14.91x |
| Exit pupil diameter (mm) | 11.6 | 3.4 |
| Eye-relief (mm) | 99 | 98 |
| Actual FOV | 8.22° | 1.42° |
| Dioptre adjustment | -2.5D to +2.5D | |
| Objective diameter | 50mm | |
| Total Windage adjustment range | 70 MOA | |
| Total Elevation adjustment range | 70 MOA | |
| Tube diameter | 30mm | |
| Tube material | Black hard anodized aluminium (HV300) | |
| Water proof | Positive internal pressure 300kPa. Submersible 1m for 60 minutes. | |
| Recoil proof | 1000G 1ms x 1000 | |
| Fog proof | Dry nitrogen purged | |
| Temperature operating range | -20 to +71°C | |
| Reticle | Illuminated RF-Tactical | |
| Battery type | CR2032 | |
| Switch type | Mechanical saddle mounted. 10 brightness settings. Instant off/on. | |
| Parallax | Side focus | |
| Eyepiece | European-style fast focus | |
| Antireflective lens coating | Fully multi coated | |
| Light Transmission | 87.98% (day) | 86.40% (night) | |
| Windage / Elevation control | Target/Tactical with zero stop on elevation | |
| Windage click value | 0.1 mil | |
| Elevation click value | 0.1 mil | |
| Length | 381mm | |
| Weight | 780g | |
| Country of manufacture | Japan | |
...

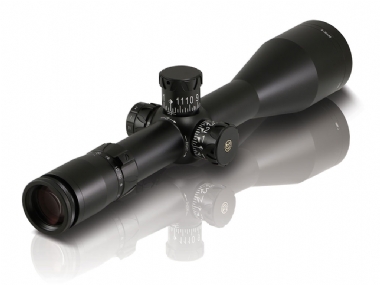

LX3 5-30x56 M20 Tac
Extra low dispersion glass and the latest anti-reflective lens coating technology gives brilliant image clarity and brightness. See bullet holes in your target at distances over 300 metres, range conditions permitting.
100MOA Elevation Adjustment with Zero Stop
The adjustment controls are precise, each click is distinctly felt and moves the point of aim precisely 1/4MOA. The zero-stop mechanism is simple to engage and returns with absolute accuracy to your predetermined zero-elevation position. All markings on the adjustment controls are bold and highly-visible, making them easy to read even if your eyesight is less than perfect.
At 20x the reticle lines subtend 2.5mm at 100m, which is fine enough for accurate shot placement without being too difficult to see, and fifteen indicator markings, evenly spaced 1-MOA apart, run along the full length of each crosswire from centre. The ranging scale inset at the top of the reticle provides a quick and accurate means of ranging a 20cm high target from 200 to 500 metres. In poor light the reticle can be green-illuminated using the eleven-step brightness control which is mounted atop the parallax wheel on the saddle of the scope.
MOA@20 Illuminated reticle (glass etched reticle)
A reticle for competition shooters. Fifteen hash marks on each quadrant, 1 MOA apart with magnification set to 20x, facilitate versatile and simple aiming off points. The 2.5mm thick @ 20x reticle lines are fine enough to use for long range target shooting but are still visible with less than perfect eyesight. Depending on range conditions, distance to target and visibility the centre of the reticle can be used either in a conventional manner as a 1 MOA floating crosshair or to bracket an area of the target. An unobtrusive range scale inset into the bottom part of the 6 o'clock leg of the reticle ranges a 20cm high targets from 200 to 500 metres.
The number and indicators on the controls are bold and highly visible and should be easy to see even if your eyesight is less than perfect. The side‐focus parallax focusses from 35 metres to beyond infinity and the illumination on the reticle is adjustable in eleven steps in intensity with off‐settings between each brightness level.
| Low Power | High Power | |
| Magnification | 5 | 30 |
| Exit pupil diameter (mm) | 8.2 | 1.9 |
| Eye-relief (mm) | 91 | 92 |
| Actual FOV | 3.12° | 0.61° |
| Objective diameter | 56mm | |
| Total Windage adjustment range | 55 MOA | |
| Total Elevation adjustment range | 110 MOA | |
| Tube diameter | One-piece 34mm | |
| Tube material | Black hard anodized aluminium (HV300) | |
| Water proof | Positive internal pressure 300kPa. Submersible 1m for 60 minutes. | |
| Recoil proof | 1000G | |
| Fog proof | Argon purged | |
| Temperature operating range | -20 to +71°C | |
| Reticle | Lynx MOA@20x reticle. SFP | |
| Battery type | CR2032 | |
| Switch type | Mechanical. 11 brightness settings with "off" position between each setting | |
| Parallax | Side focus, 50m to infinity | |
| Eyepiece | European-style fast focus | |
| Antireflective lens coating | Fully multi coated | |
| Light Transmission | 88.5% (day) | 85.00% (night) | |
| Windage / Elevation control | Tactical / Target | |
| Windage click value | 0.25MOA | |
| Elevation click value | 0.25MOA | |
| Length | 367 | |
| Weight | 1 140g | |
| Country of manufacture | Japan | |
Download instructions for MOA@20 reticle and Zero-Stop operation
***
Red-Dot series With integrated mount for Picatinny rail

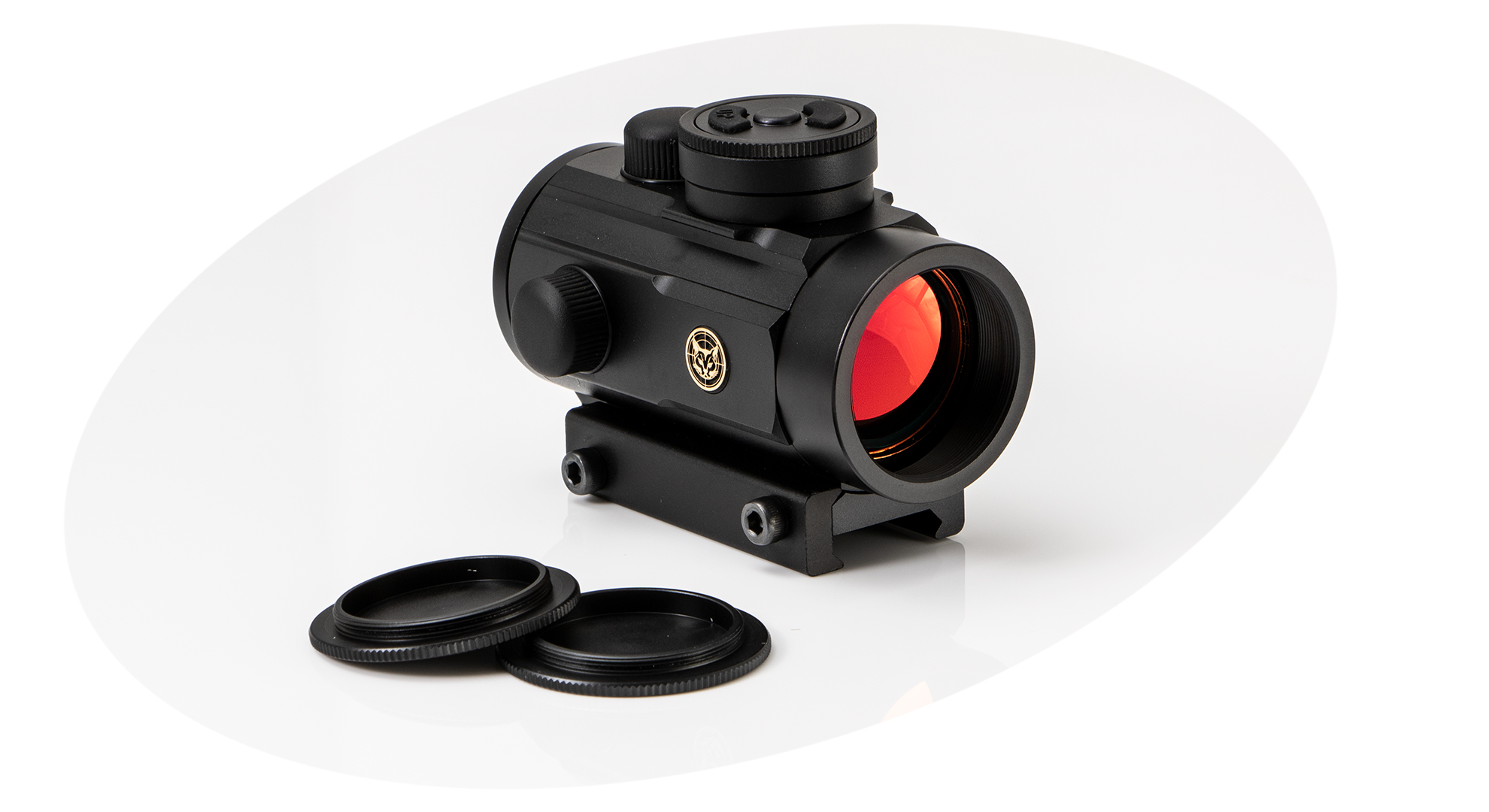

RDC-2
Non-magnifying red-dot scopes are the ideal aiming system for use on running targets and on dangerous game. Target acquisition is virtually instantaneous and tracking of moving bodies is unmatched by any other system.
Lynx RDC-2 features an eleven setting digital switch that switches off after 3.5 hours of no input from the shooter. This coupled with the 130-hour battery life represents over 40 days of illumination even if the scope is switched on and not switched off once each day.
The scopes are usable by day and night on rifles handguns and dart guns, allowing one-eyed and two-eyed aiming techniques. For distances up to about 125 metres the small dot versions (three and four MOA) are also eminently suitable for general bushveld hunting.
Lynx red-dot scopes can be mounted at any desired distance from the aiming eye. The dot is switchable over eleven brightness levels to suit ambient conditions; the scopes are recoil proof for the biggest hunting and handgun calibres. Weaver type rings are included.
- Digital switch with auto-off
- Virtually instantaneous target acquisition
- Easy tracking of moving targets
- Day and night use
- One or two eyed aiming
- Usable to extremely close range
- Non-critical eye relief
| Power | 1x | Click value | 30mm |
| Objective diameter | 30mm | Tube diameter | 38mm |
| Field of view in degrees | 20° | Length | 75mm |
| Eye relief | Free | Weight | 154g |
| Graticule (std) / options | 4MOA Dot | Available Finishes |
Matt black |
...

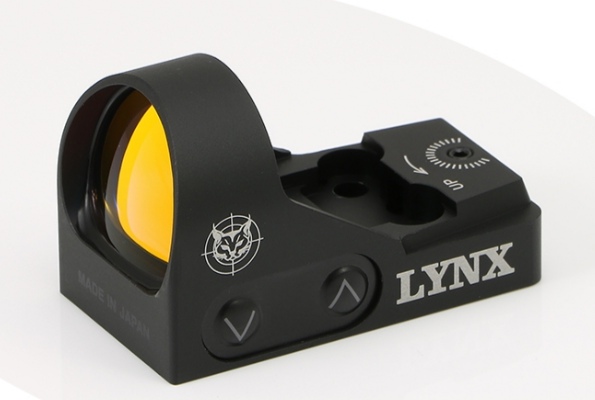

RDR-1
Single-lens non-magnifying red-dot reflex sights are the ideal aiming system for use on close-up targets and moving targets, up to a distance of about 100 metres. Target acquisition is virtually instantaneous and tracking of moving bodies is unmatched by others systems.
Out of the box Lynx RDR-1 comes complete with a Picatinny adapter for fitting onto a Picatinny rail or Weaver® type mounting block.
The scope is usable by day and night on rifles, handguns and dart guns, allowing one-eyed and two-eyed aiming techniques. The eye-relief is non-critical, meaning the sight can be mounted at any distance from the shooter's eye.
RDR-1 uses two pressure buttons on the side right side of the unit marked to set the dot to the desired brightness setting. There are ten intensity levels. When turning the dot on, the brightness setting will be recalled from when it was last switched off. The illumination turns off automatically after three hours.
- Auto off illumination
- Clip-on protective plastic cover for protection when not in use
- Virtually instantaneous target acquisition
- Easy tracking of moving targets
- Day and night use
- One or two eyed aiming
- Useable to extremely close range
- Non-critical eye relief
***
Sunshades
***
Reticles for LX- and LX2-Series variable magnification rifle scopes
Hold over 2
Can be fitted to any LX and most LX2 riflescopes. Nine hold-over aiming points below the centre cross provide an accurate means of compensating for bullet drop over 100 to 400 metres without touching the scope. The diamond-shaped aiming points are small and unobtrusive, presenting an uncluttered sight-picture that does not confuse the eye.
Instructions - Hold-over reticle 2.pdf
...
Fine cross reticle
Can be fitted to most Lynx riflescopes. Best suited to target shooters who require very fine aiming reference. The dot is 1/4 MOA with the scope set to 24xNot suitable for hunting.
...
G4i reticle (illuminated centre dot)
.jpeg)
Three heavy outer bars at left, right and bottom quadrants. The thinner cross section extends all the way to the top edge of the sight picture. Crosswire lines are bold and visible against any background under most lighting conditions. The centre illuminated dot ensures that the aiming point of the scope is viable under all circumstances.
...
Mil dot reticle (illuminated centre dot)
Mil dot spacings are available in 10x, 12, 16x and 24x sizes, depending on the scope model.
...
Rangefinding reticle - glass etched
Lynx RF-Tactical reticle is newly designed for tactical sport shooters. It is graduated in mils in 1 mil and 1/2 mil increments. The centre circle and dot illuminate green to provide for both quick and accurate aiming, depending on your situational requirement.
The ranging scale, calibrated to range 50cm high target from 200 metres to 1 200 metres in 100 metre increments and 33cm & 25cm high targets from 200 metres to 600 metres, is inset at the bottom of the sight picture.
S.A. Hunter Reticle
Ideal for flat-shooting hunting rifles. Lynx SA Hunters reticle gives hunters the means to hunt or cull up to 300 metres away with first shot dead-on accuracy. Provides accurate hold-over aiming points from 50m to 300m at 50 metre intervals with standard velocity ammo (up to 3000fps) and from 100m to 400m at 50m intervals with high velocity ammo (above 3000fps).
...
Lynx MOA@20 reticle
Fifteen hash marks on each quadrant, 1 MOA apart with magnification set to 20x, facilitate versatile and simple aiming off points. The 2.5mm thick @ 20x reticle lines are fine enough to use for long range target shooting but are still visible for shooters with less than perfect eyesight. Depending on range conditions, distance to target and visibility the centre of the reticle can be used either in a conventional manner as a 1 MOA floating crosshair or to bracket an area of the target. An unobtrusive range scale inset into the top part of the reticle ranges a 20cm high targets from 200 to 500 metres.
***
Target / tactical windage and elevation controls
The over-sized windage and elevation adjustment controls have large high-contrast white-on-black lettering that are easy to read in poor light with a minimum of visual clutter, and return to zero direction indicator.
Each click adjusts the point of aim +/- 1/4 MOA (8 mm @ 100) and each full turn of the control adjusts 12 MOA.
***

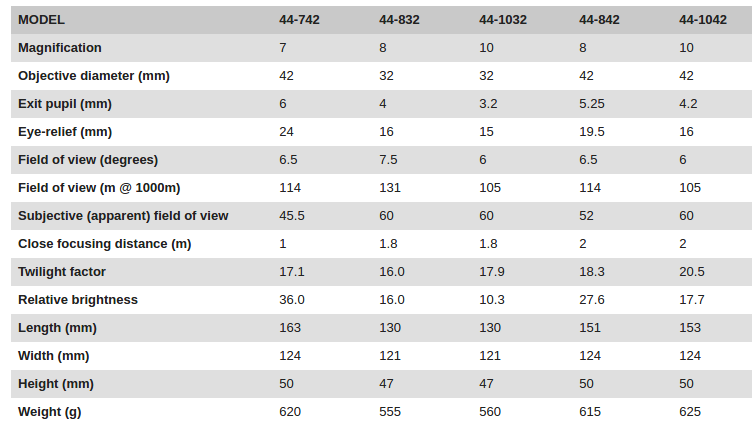

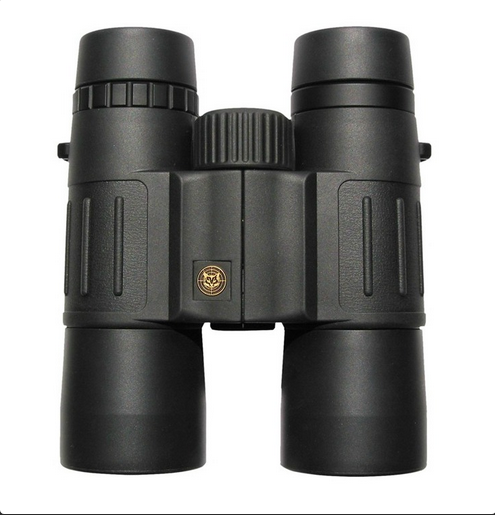

Series-44 Standard Size Roof Prism Binoculars
Lynx Series-44 binoculars are tough, lightweight and waterproof. Twist-out eyecups make them suitable for use with or without spectacles. Lenses are fully multi-coated and the phase-coated BaK4 prisms produce crystal-clear colour true images.
Series-44 binoculars come with a lifetime warranty and, like all Lynx binoculars, are 100% made in Japan.
- Tough, lightweight polycarbonate body
- Multi-coated optics
- Phase-coated Bak4 roof prisms
- Twist-out eyecups for use with or without spectacles
- Waterproof to 1 metre
- Nitrogen filled
- Black rubber armour
- Tripod socket
- Fast, accurate focus.
...

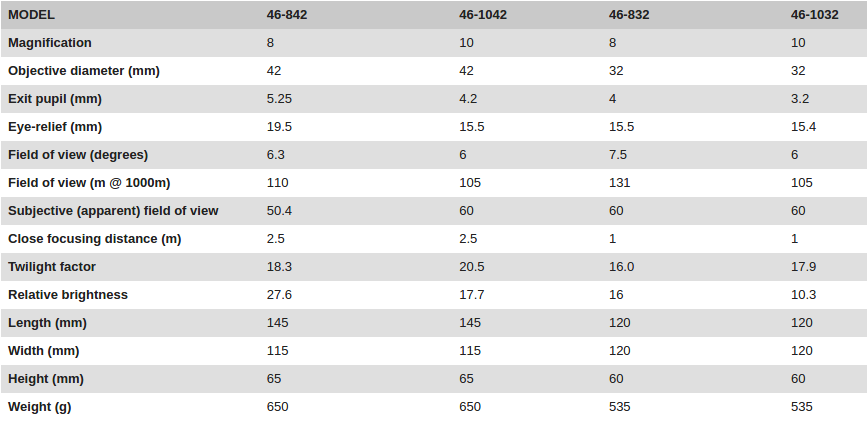

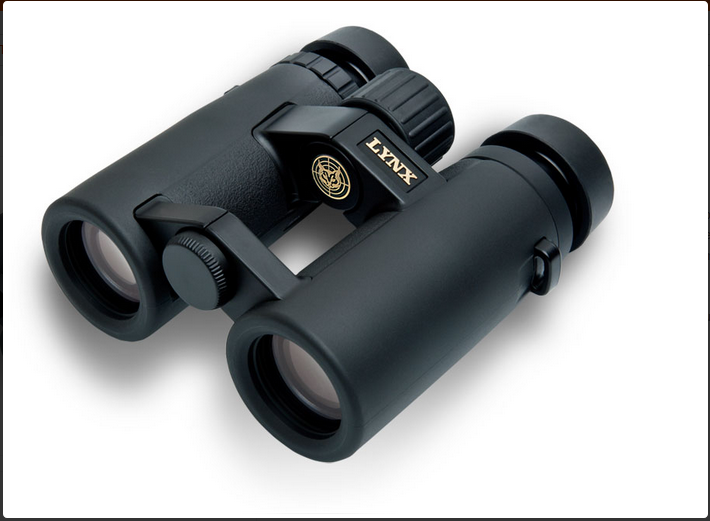

Series-46 Standard Size Roof Prism Binoculars
Lynx Series-46 open hinge binoculars are tough, lightweight and waterproof. The open hinge design is an easy fit in one hand and twist-out eyecups make them suitable for use with or without spectacles. Lenses are fully multi-coated and the phase-coated BaK4 prisms produce crystal-clear colour true images.
Series-46 binoculars come with a lifetime warranty and, like all Lynx binoculars, are 100% made in Japan.
- Open hinge design
- Tough, lightweight polycarbonate body
- Multi-coated optics
- Phase-coated Bak4 roof prisms
- Twist-out eyecups for use with or without spectacles
- Waterproof to 1 metre
- Nitrogen filled
- Black rubber armour
- Tripod socket
- Fast, accurate focus.
***
RANGER BINOCULARS

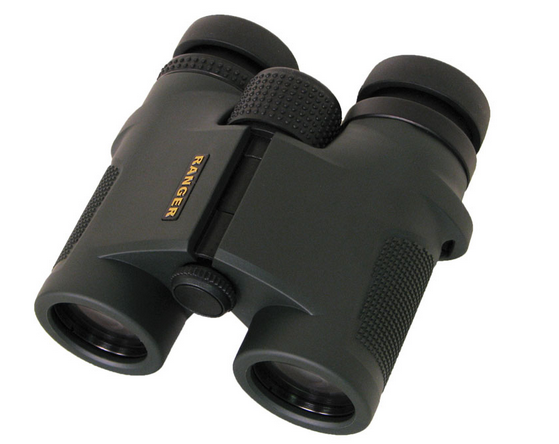

Ranger 8x32 &10x32
...

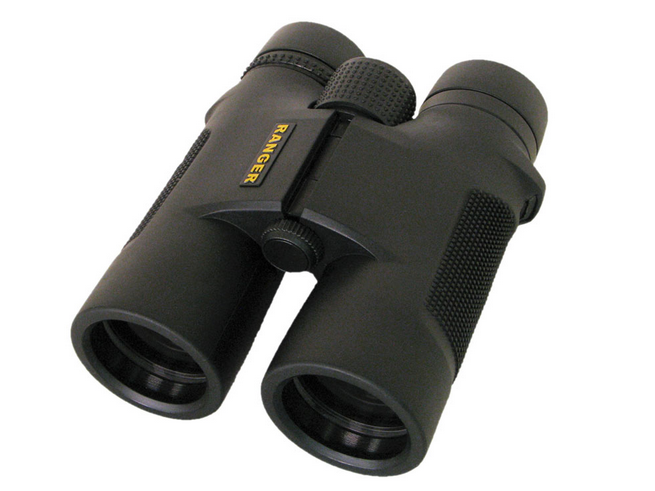

Ranger 8x42 & 10x42
Ranger roof prism 42mm objective-lens binoculars are waterproof and suitable for use with or without spectacles. The fully multi-coated lenses and BaK4 prisms produce bright, crisp images.
- Roof prism design
- Polycarbonate body
- Multi-coated optics
- Bak4 prisms
- Twist-out eyecups for use with or without spectacles
- Waterproof
- Nitrogen filled
- Black rubber armour
Ranger 8x42mm
| Model | 8x42mm |
| Power | 8x |
| Objective | 42mm |
| FOV | 7.5º |
| Weight | 725g |
| Dimensions | 155x130x55mm |
| Exit Pupil | 5.2mm |
| Eye-relief | 17mm |
| Focus | 2m |
Ranger 10x42mm
| Model | 10x42mm |
| Power | 10x |
| Objective | 42mm |
| FOV | 6.3º |
| Weight | 725g |
| Dimensions | 155x130x55mm |
| Exit Pupil | 4.17mm |
| Eye-relief | 15mm |
| Focus | 2m |
***
Kowa std Roof Prism Binoculars & Kowa Genesis XD Binoculars
PROMINAR XD lenses attain the highest pinnacle of binocular performance.2XD lenses are utilized in the objective end of the binocular. this significantly reduces chromatic aberration and provides high contrast in the field of view.
Seeking a world of binoculars without chromatic aberration. Flagship model incorporating XD lenses.
The Genesis Series incorporates Kowa’s “PROMINAR” lenses. To attain the highest pinnacle of binocular performance, a total of 4 XD lenses (2 sets of 2 lenses) are utilized in the objective end of the binoculars.
This significantly reduces chromatic aberration and provides high contrast in the field of view.
The prism system of the Genesis/XD44 delivers a wide field of view and edge to edge sharpness with minimal loss of light. This high refractive roof prism (Bak4 + SK15) offers near total reflectance and when combined with Kowa’s proprietary C3 coating, delivers the clearest and sharpest image.
***

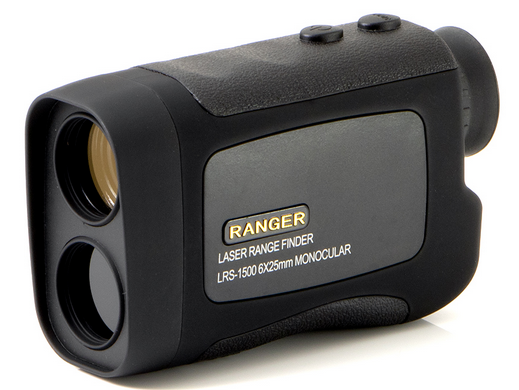

LRS-1500 Rangefinders
Ranger LRS-1500 Laser Rangefinder for range finding up to 1500 m with ± 1 m accuracy.
LRS-1500 also features an inclination sensor which displays the vertical angle to the target and calculates the distance over the ground in the case where you may be aiming at targets that are above or below you.
Four modes of measurement eliminate false readings from rain, fog and interference from close-lying foliage and fencing.
| Ranging distance | 5 m to 1 500 m |
| Measurement method | Semiconductor Laser (harmless to eyes) |
| Accuracy | ± 1 m (±0.1%) |
| Angular measurement range | 0 to 90º up or down |
| Angular measurement accuracy | ± 1 m |
| Angular resolution | 0.5º |
| Display | LCD display |
| Lens Aperture | 24 mm |
| Lens coating | Multi-coated optics |
| Exit Pupil | 3.8 mm |
| Eye Relief | 12 mm |
| Focusing mode | Eyepiece focusing |
| Magnification | 6x |
| Field of view at 1000m | 122 m |
| Ranging mode | RAIN, RELF, >150, No display (stands for standard mode) |
| Power supply | 1x CR-2 3V Battery |
| Dimensions | 45 x 121 x 73 mm |
| Weight | 180 g |
